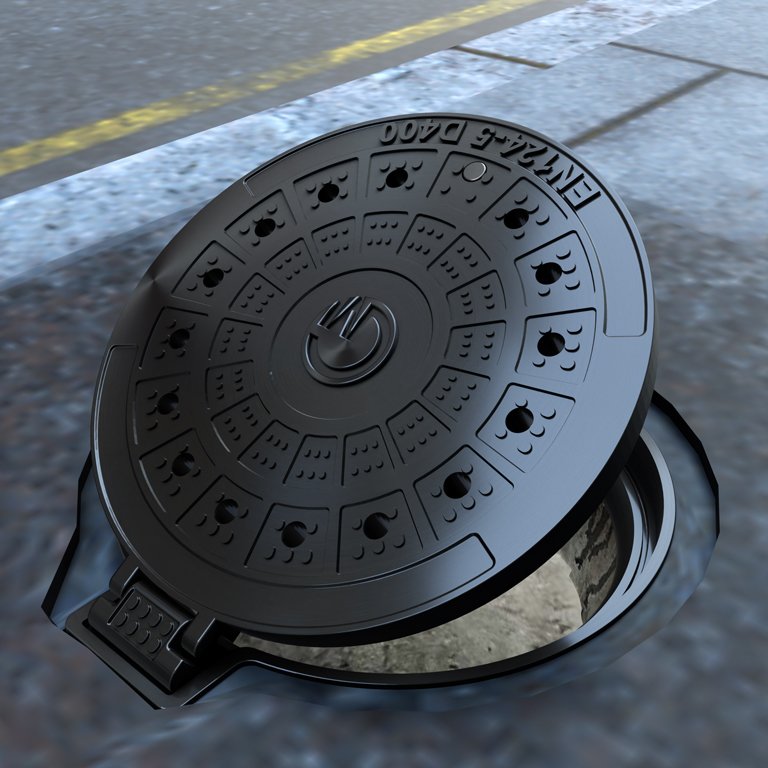

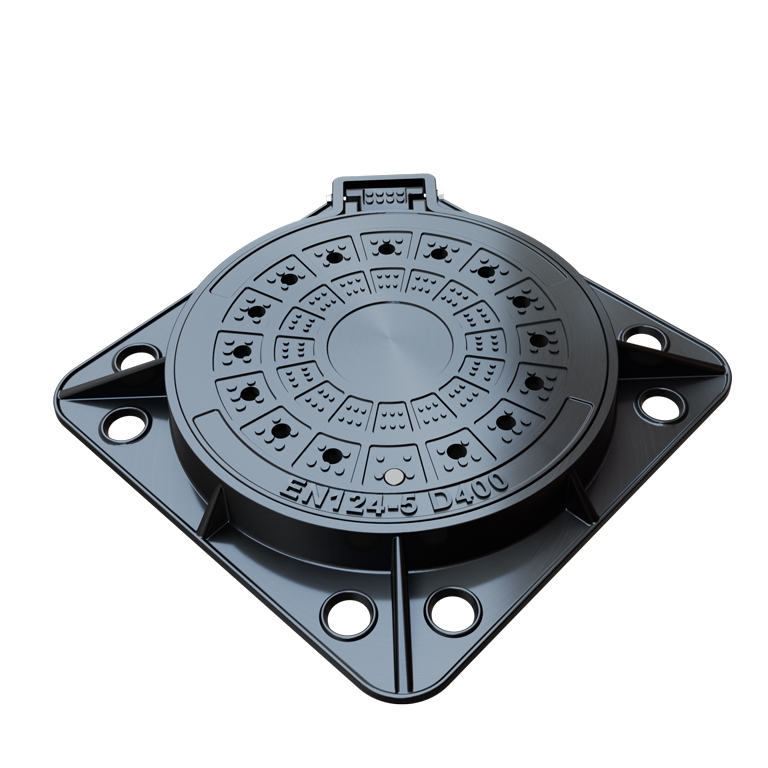

SMC Circular Pit Lid D-Class 650mm
- Jinmeng offers a whole range of sewer pit lids that meet AS3996, AASHTO standards to ensure road safety and access ability. We apply the SMC polymer resin technique which has excellent material strength and durability. Jinmeng pit lids have bolt-down fixings and security locking to ensure the sealings while allowing easy access for sewers. The SMC circular pit lids are with slip-resistant surface that retains BPN40+ on Rainy Days. And allows occasionally vehicle traffic.
- The pit cover also used to protect cable, valves, meters, stormwater systems, and architectural projects.
| Module | JM-MR107DH SMC Circular Pit Lid | |
| Load Capacity | D-class 40 ton | |
 | D | 700 mm |
| O | 650 mm | |
| F | 805 mm | |
| h | 40 mm | |
| H | 75 mm | |
| Weight | 50 kg | |

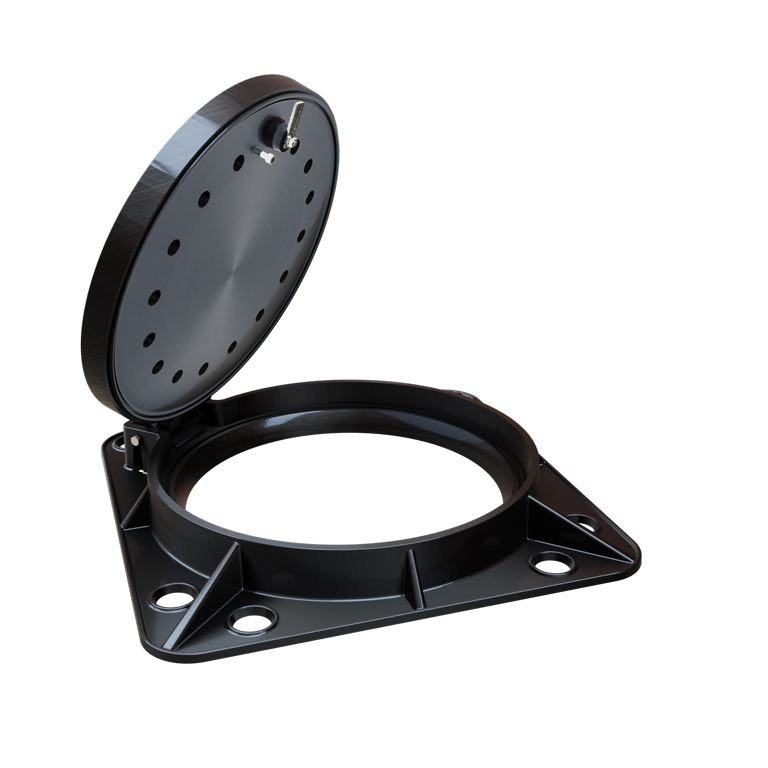

| 120 Degree Opening | Cover Hinge | Cover Lock |
 | ||

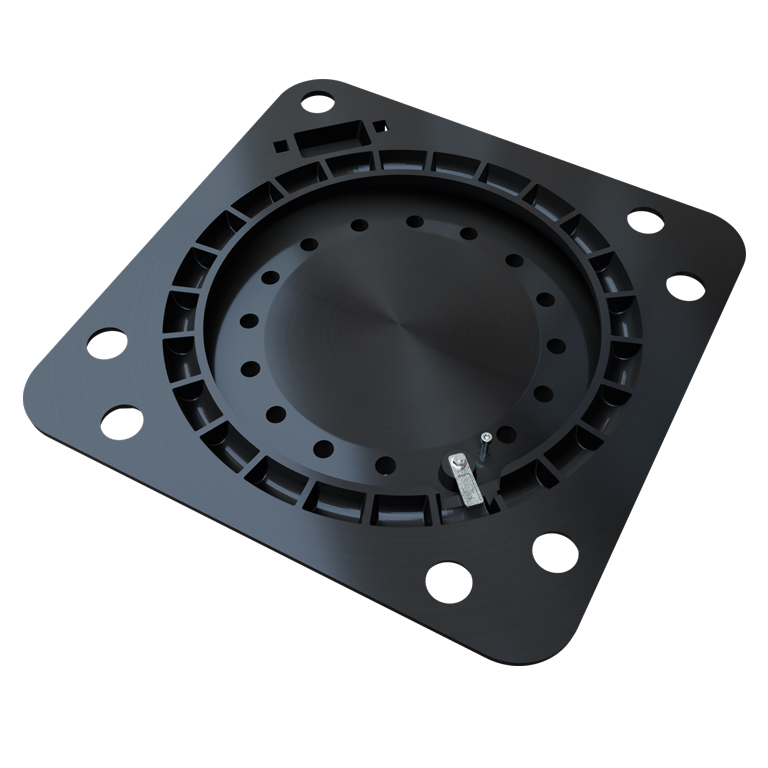

| Custom Logo Size | Screw Locker | Lifting Hole and Rotation Stop |
 | ||

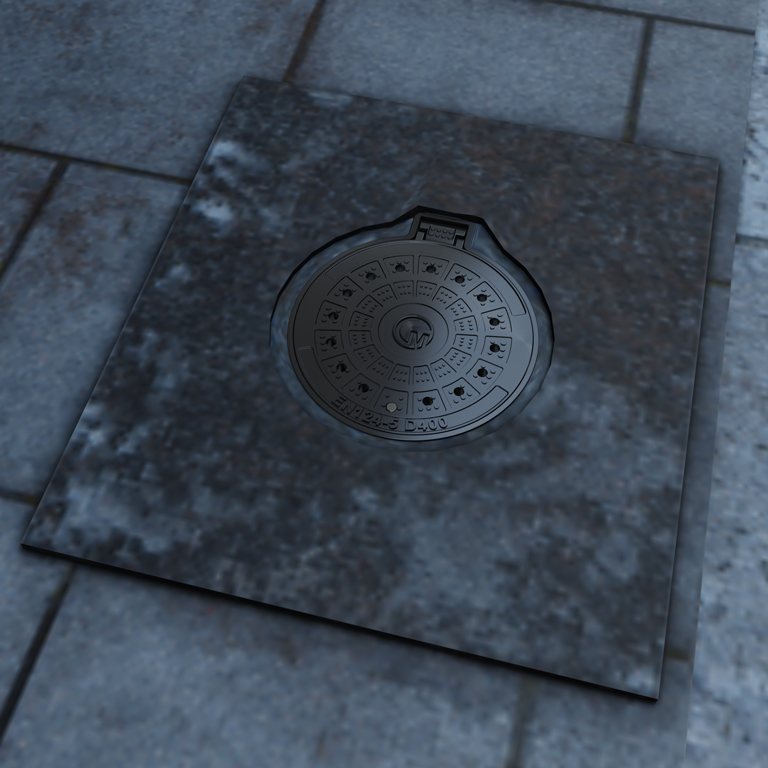

The pit lid can be easily retrofitted by one person to existing lid cover installations to replace the heavier precast concrete / cast iron lid covers and comes with a built-in locking mechanism for safety and security.
Features
| D class load capacity, Maxim 40ton, AS3996, AS4586 stated, Approvable to your local road register |
| Lightweight, one person safe install, save labor cost, low shipping cost, outdoor storage OK |
| Exclusive Composite SMC technique, stronger than concrete, corrosion-free, Anti-friction, Slip Resistant |
| Tailored colors and surface designs, Options for the larger area include the insertion of your own logo |
| Covers can be vented which helps prevent the build up of explosive gases. |
| Screw down fixing, Optional T type lock to prevent unauthorized access |
| Resistant to chemical aggressive solutions and materials |
| Non-conductive and static dissipative, no electrical hazard risks |
| Exclusive Composite FRP technique, stronger than concrete, corrosion-free |
| Jinmeng has a 70000 sqm manufacturing area, 800+ especial mold, Rigorous quality inspection system |
